Product Description
* FOUNDERS EDITION *
* CONTACT US FOR PRICING *
The Recoil-IQ is a scientific instrument that greatly enhances the ballistic laboratory of the serious shooter. By measuring the recoil event as transmitted to your shoulder you will gain the knowledge to improve your accuracy, comfort, repeatability, follow-up shot placement, reduce cycle time, and much more. It will improve your component and ammunition selection abilities to optimize for every scenario. The recoil IQ will help you select optimal muzzle brakes, recoil pads, buffer springs and carrier group components for given bullet weight, powder charge, barrel length, etc. combinations. Not only will the data enhance your performance as a shooter, but will shed light on the mechanics of the firearm itself – revealing dynamic events occurring at the sub-millisecond level that are not distinguishable by the user.
Note:

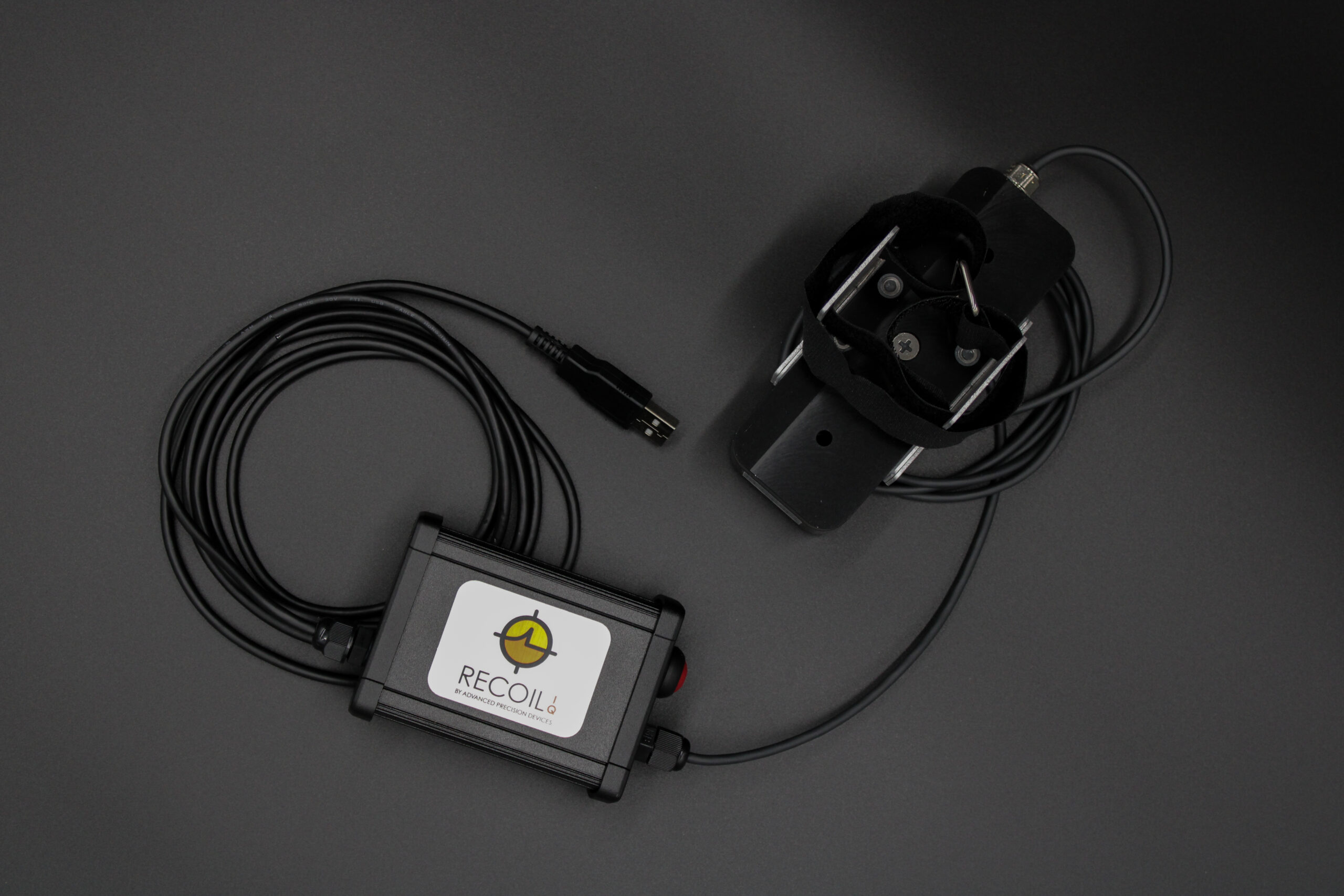

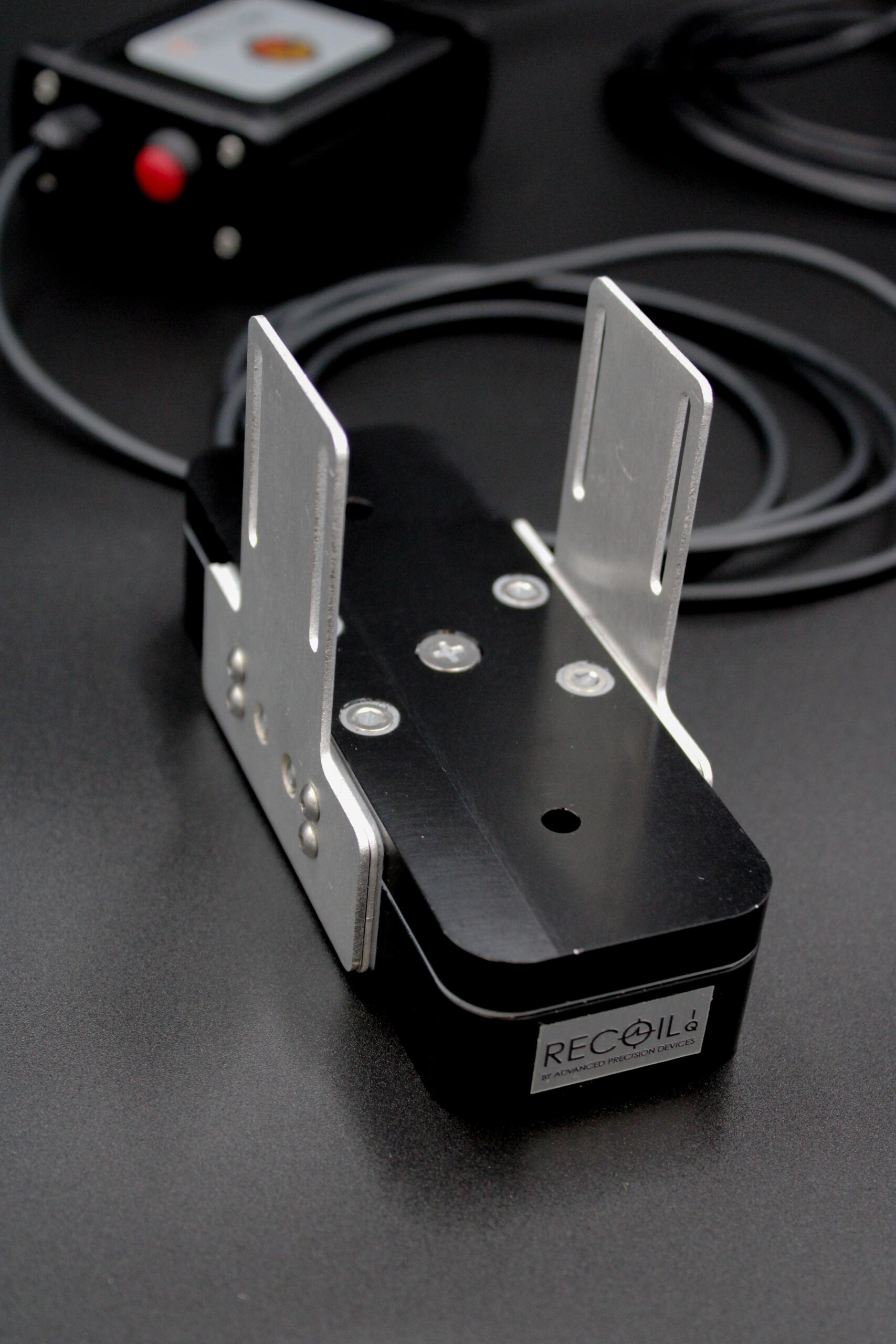

Due to current supply chain and part availability, the Recoil-IQ device may vary slightly from pictures shown above. This however will not change the quality, functionality, or accuracy of our finished product.
Additional Information
| Color | Black |
|---|---|
| System Requirements | OS: Windows 10 or newer |
| Mac OS Support | No. Support for Mac OS will come with future software/firmware updates |
| Firearms Included with Purchase | No |
| SKU | APD-BK-0001 |
| Full Scale Measured Force (lbf) | 400 |
| Maximum Recoil Force Without Damage (lbf) | 550 |
| Calibrated Accuracy Minimum (% of Full Scale) | +/-1.0% |
| Resolution (lbf) | 0.095 |
| Sampling Rate (samples/second) | 4000 |
| Samples Per Shot | 500 |
| Shot Detection Duration Window (seconds) | 0.125 |
| Sensor Weight (lbf) | 1.0 |
| Sensor Thickness (inches) | 1.12 |
| Sensor Length (inches) | 5.0 |
| Sensor Width (inches) | 1.8 |
| Sensor Cable Length (ft) | 5.5 |
| USB Cable Length (ft) | 5.5 |
